Frame - Sam Hillborne

Regular price $1,750.00 USD
Regular price Sale price $1,750.00 USD
Shipping calculated at checkout.


If you want us to build your frame into a complete bike, please add this into the cart with your frame.

If you want us to prep your frame before shipping it, please add this to the cart with  your frame.

If you want us to prep your frame before you pick it up, please add this to the cart with your frame.

If you only want a frameset and don't want it prepped, no need to add anything other than the frame to your cart.

Onto the fun stuff:


FOR ALL ROADS— paved, dirt, or gravel; and the kinds of fire trails a Conestoga wagon could negotiate, but not the kind that would require a jackass. If you're skilled and have good judgement and fattish knobby tires, you can ride the SAM where you shouldn't. Stick with what it's designed for: all the above, and ROAD TOURING, ROAD SHOPPING, and ROAD COMMUTING.

The Sam is a versatile road and light trail bike.

ALL WEATHER: Easily fendered. Can the "gravel bike" you're considering fit fenders? How about racks?

Everything that makes it a great touring bike also makes it a great commuter, camper or all-rounder. The Sam is equally a great bike for a carrying food and camping gear and clothing around.

 FRAME: Our-designed SILVER (brand) CrMo tubing in dimensions we see fit. Geometry is ours alone, also. It rides like all Rivendells. Good with drop bars or uprights. Fits tires up to 45 with fenders, 48 without.

BRAKES: V-brakes (standard or mini) or cantilevers. We can advise.

If you will use Cantis, be sure to buy front and rear cable hangers (not included).

BRAZE-ONS: A-plenty. Easy to mount racks, fenders. (Well, as easy as they ever are. They're usually a little fussy, but that's not the frame's fault.)

LOAD CAPACITY: It depends on your weight, the road surface, the tire volume, air pressure, and your riding style. Basically, a 185lb rider can probably tote 35 to 40lbs on road rides. It's not a full-on touring bikes, but it's not a wimp, either.

HANDLEBAR STYLE: Drops, Albastache, or any upright. Use a short stem with drops or Albastache--maybe 5 to 7cm. With Albatross, up to 10cm, and with Billie or Tosco, 11 or 12cm.


for 90 percent road: 700c: Any Shikoro, 38mm, 42mm, 48mm, or the 700c Cava, at 47.99. There are lots, but these are the ones we sell.

650B: Cava 47.99mm or Gravel King 38mm or 48mm. Even though it's a "Gravel King," the tread is more suited to pavement.

for 50-50 pavement and dirt: Cazadero 43mm or Rose 47.99

RIDER WEIGHT LIMIT?: It's hard to say, it depends so much on what else you're carrying, the surface you're on, the tire volume and pressure...lots of things that are just hard to pin down. But we'll say...220lb. But if you weigh that, don't also load the bike up with touring gear. And consider an Appaloosa, which fits bigger tires and has a stouter fork.


The Sam Hillborne is a classically styled frame with sweated-over graphics. The frame joints are lugged, the fork has a crown, and they're all our own designed investment castings, starting from rocks, which are made into metal, and shaped with precision and beauty by a process developed in China ten thousand years ago.

We pay attention to even the most superficial details: The stress-relief hole on the back of the seat lug is painted cream. The wings on the fork crown, too. The seat tube and down tube decals are in exactly the right spot, something that always used to happen before the 21st century came around and people with no taste took over. The letters are filled with cream, edged in black, and "halo'd" in gold, for an easy-on-the-eye transition to the paint color. The fork's curved and tapered blades have wild and crazy, beautiful cream-edged dropouts. The bottom bracket shell is designed to minimize stress, with curves where other shells have points; and with windows to aid the brazer. Age, scrapes, grime, and other signs of use just make it look better.

TWO COLORS: Dark gold pearl--kind of an orangey butterscotch pearl; and Rivendell blue, another pearly color, and maybe the best blue we've seen.

If you buy just the frame & fork, it comes with a headset, bottom bracket, and seat post—a cumulative value of about $120. Most frame/forksets you buy don't include that stuff.

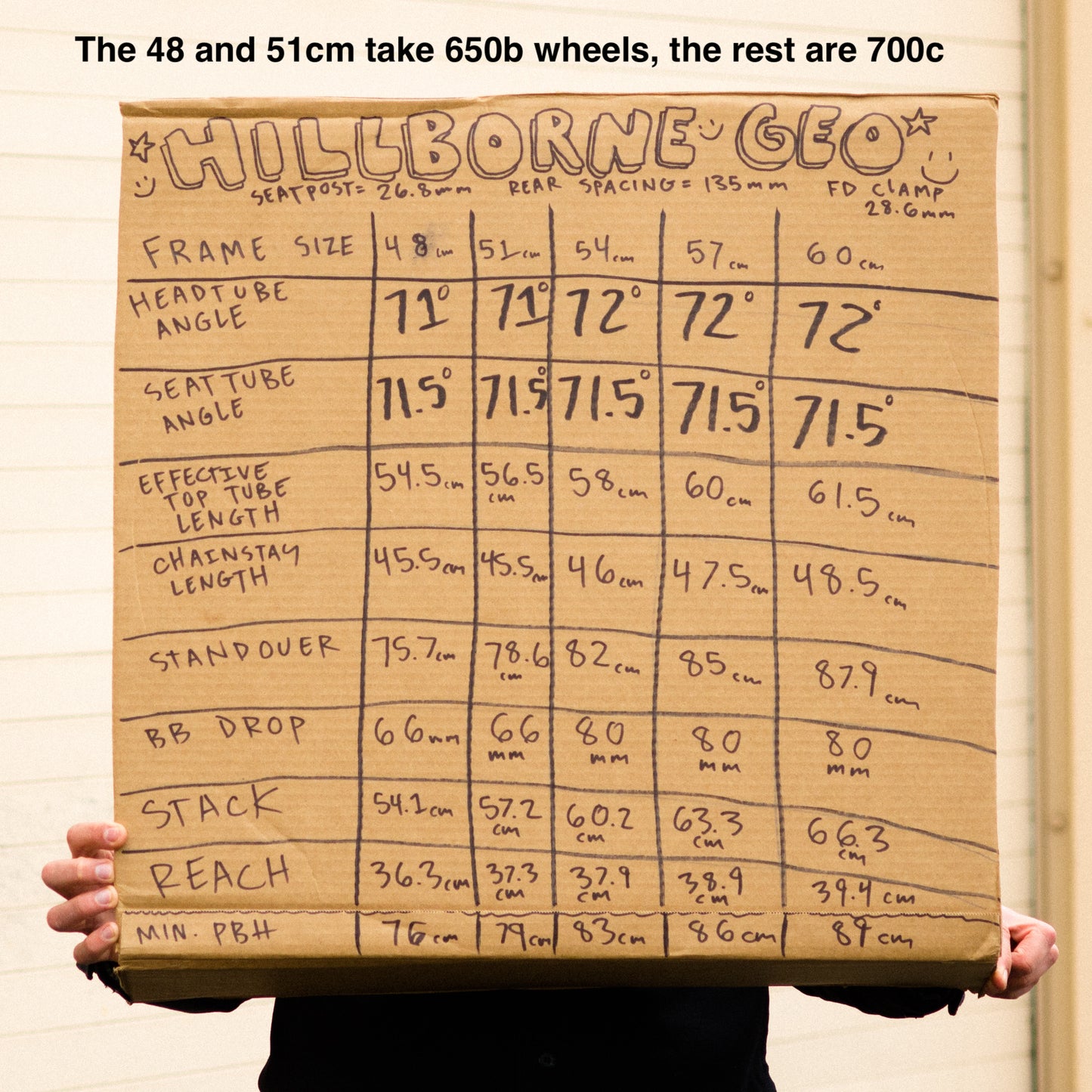

Frame, wheel, min PBH:

48cm   650b        76cm.

(typical rider height up to 5-5)
51cm    650b.      79cm

(typical rider height up to 5-8)
54cm   700c        83cm

(typical rider height up to 5-10.5)
57cm   700c.       86cm

(typical rider height up to 6-0)
60cm  700c         89cm.

(typical rider height up to 6-4.5)
