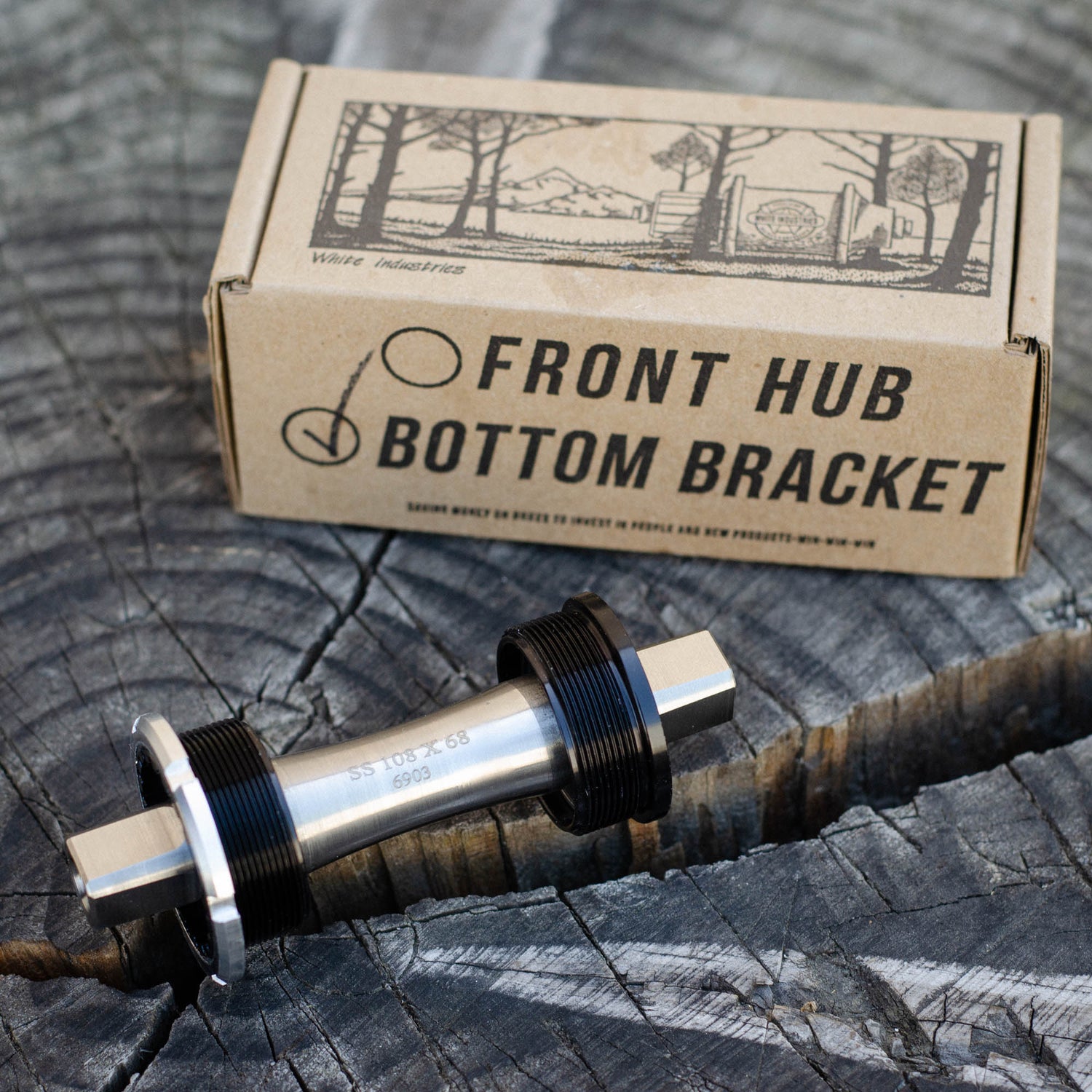

Bottom Bracket - White Industries, square taper, stainless steel

Bottom Bracket - White Industries, square taper, stainless steel

Regular price $155.00 USD
Regular price Sale price $155.00 USD
Sale Sold out
Shipping calculated at checkout.
BB Shell Width
Spindle Length

The $20 Shimano cartridge BBs work great, if you want to go fancy and don't want to commit to the once-a-year maintenance of the IRD cup-n-coner, get this White Industries one instead. They're made in Petaluma and should be good for a long, long time.

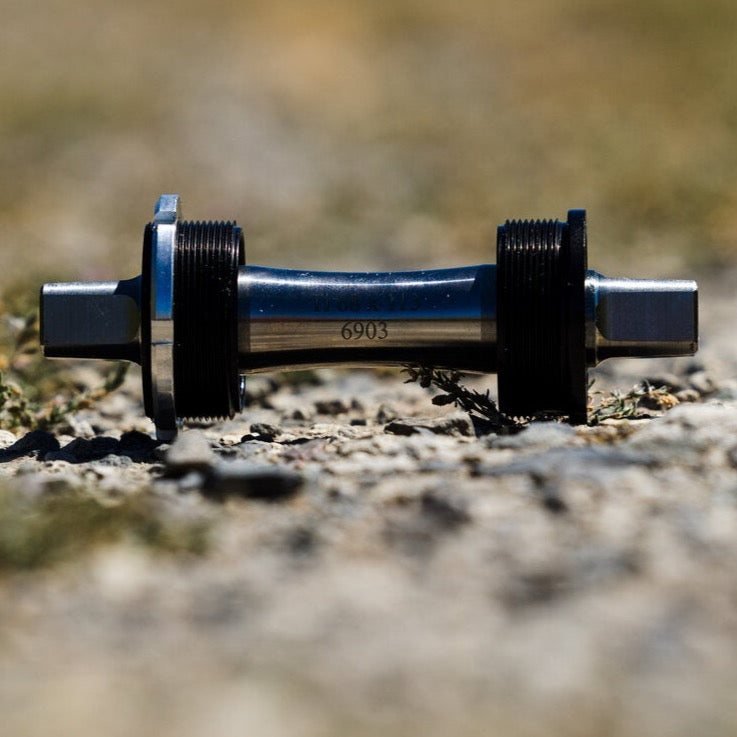

White Industries square taper stainless steel bottom brackets




JIS taper for White Industries, Shimano, Sugino, Clipper, etc. (but not Campy) cranks.



All our bikes have 68mm bb shell width except the Gus and Susie which have 73mm bb shell width.





Installation instructions

https://www.whiteind.com/wp-content/uploads/2020/09/Instructionsbottombracket.pdf



Tools

  • Cup tool
    • Park BBT-22 or BBT-32
    • Shimano TL-UN52 or TL-UN74-S
  • Lockring tool
    • 6-notch 44mm inner diameter/41mm tooth diameter or a hook spanner







Weights

Spindle Length

68mm BB Shell

 Steel

73mm BB Shell

Steel

108mm

207g

N/A

113mm

213g

214g

121mm

226g

227g





Specs

  • 1.37” x 24 TPI threads
  • Compatible with 68mm or 73mm bottom bracket shells (spindles are specific to shell width)
  • Options include:
    • Stainless steel
    • 108mm, 113mm, or 121mm spindle lengths
    • 68mm and 73mm bottom bracket shell widths
    • 108mm spindles not available for 73mm BB shell widths

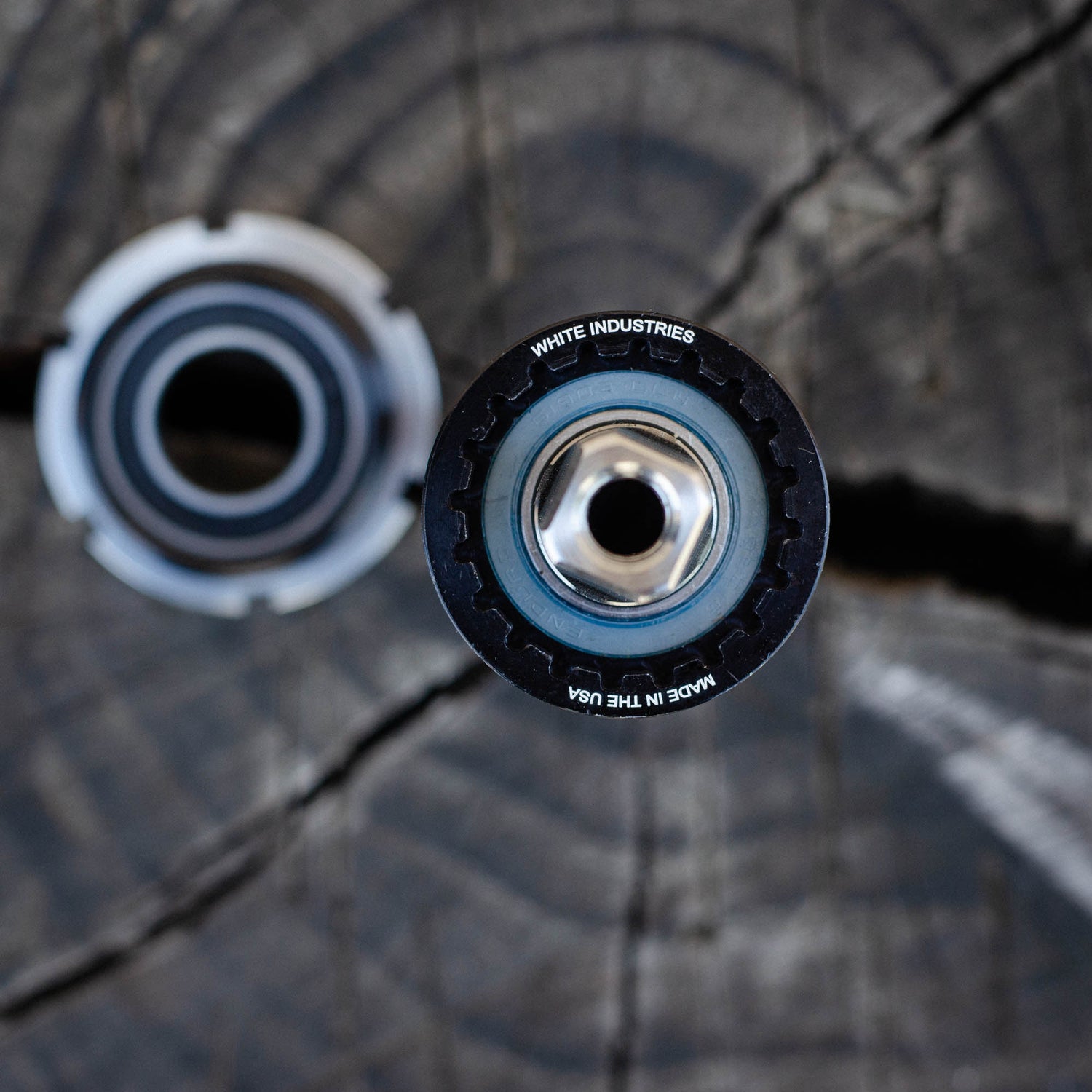

  • Bearings
    • 2x Enduro ABEC 5 61903 LLB
